Quick Details

  • Light Source: LED
  • Item Type: High Bay Lights
  • LED Light Source: Epistar
  • Warranty(Years): 5
  • Input Voltage(V): 90-305
  • Lamp Power(W): 100
  • Lamp Luminous Flux(lm): 12000
  • Lamp Luminous Efficiency(lm/w): 110
  • CRI (Ra>): 80
  • Working Temperature(℃): -30 - 45
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP55
  • Certification: CE, RoHS, UL
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Proslight
  • Model Number: IX100W-100N-FU
  • Power factor: >0.9
  • Beam Angle: 20/30/45/60/90/100 deg
  • DRIVER: Constant current driver from MEAN WELL

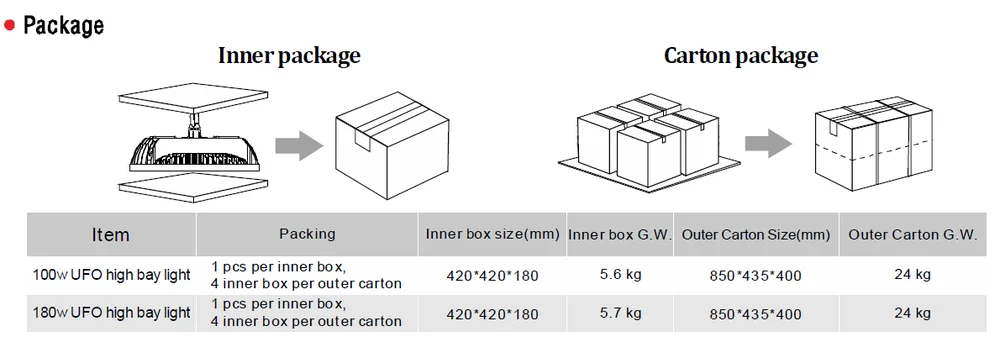

Packaging & Delivery

Packaging Details 1 pcs per inner box, / 4 inner box per outer carton
Inner box size(mm):420*420*180
Inner box G.W.:5.6kg
Outer carton size (mm):850*435*400
Outer carton G.W.:24kg
Delivery Time 3-5 work days after order confirmation

industrial /warehouse UFO 100w led high bay light



> Cooling fins as heat sink with forging technic.
> Instant on/ off; No UV/ flickering
> 50% less power consumption than traditional light sources
> VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal
> Constant current driver from MEAN WELL
> High power LEDs from Epistar
> .ies/.ldt files are available , Working temperature : -30 - 45 (-25.6 F - 113 F)
> Three different covers for option: clear tempered glass cover, clear PC cover, and frosted tempered glass cover.


1. Take out the UFO high bay and put up-right, and then check to make sure the lamp body is all right
2. As shown in picture below, three mounting types for option:

A) fix the bracket by expansion sc rew in prop er size, and adjust the UFO high bay to achieve expected emitting ang le;
B) Rotate the suspension loop till it is fixed onto th e UFO high bay, then hang the lamp directly with the h ook in the right place
C) First, fix the suction cup with sc rews on the c eiling. T hen rotate the spiral pole into the suc tion c up. After en sure the      suction cup and the po le fixed well,rotate the UFO high bay till it is fixed o n the pole.

3. Make connection with mains supply as per following instruction and light up.
This LED light is suitable for Warehouse, Factory work shop, Stadium, Shopping mall, Exhibition mall ect.
